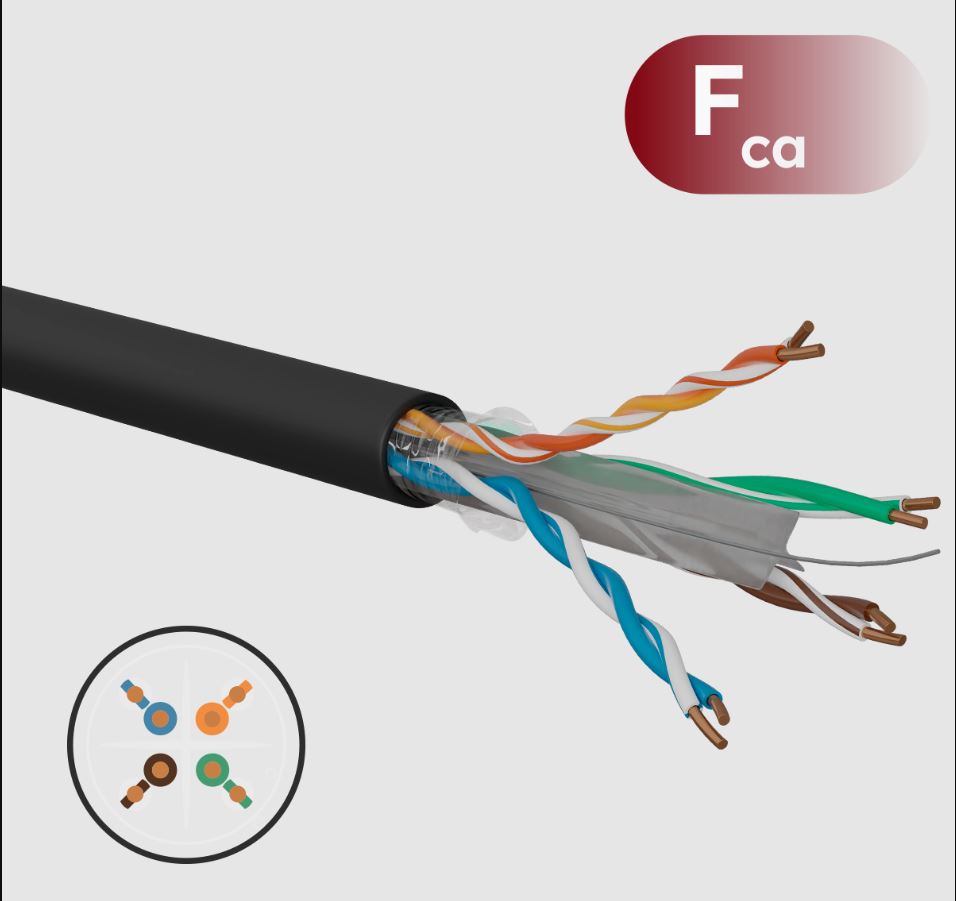

Cat. 6 U/UTP outdoor PE Fca solid cable in 500 m reel, AWG 24, black color 0166F2

Description
Unshielded copper cable consisting of 4 twisted pairs. Intended for voice and data transmission in local area networks (LANs), primarily for horizontal cabling. Supports frequencies up to 250 MHz and speeds up to 1000 Mbps.
Applications
Supports all current LAN applications, including:
■ 10Base-T (IEE 802.3)
■ 100Base-VG-AnyLAN
■ 100Base-T (IEE 802.3)
■ 1000Base-T (Gigabit Ethernet)
■ 55/155 Mbps ATM
■ 4/16 Mbps Token Ring (IEE 802.5)
Standards
■ ANSI/TIA/EIA 568B.2
■ ISO/IEC 11801
■ EN 50173
Features and Benefits
■ Weatherproof polyethylene enclosure.

■ Exceeds the Cat. 6 requirements specified by the standard. ■ Low propagation delay.

■ High ACR values ​​and minimal velocity error.

■ Quick identification and easy installation.

■ High-quality cable design.

■ Available in 305 m boxes and 500 m reels.

Physical and Mechanical Specifications
■ Composed of: 8 insulated conductors in 4 twisted pairs
■ Conductor: Rigid annealed copper
■ Diameter: 24 AWG 0.53 mm

■ Insulation: HDPE
■ Jacket: Black PVC, ø 6.3 mm
■ Color code: Orange-white, orange, green-white, green, blue-white, blue, brown-white, brown
■ Maximum tensile strength: 10 kg
■ Operating temperature: -30°C to 70°C
Electrical Specifications
■ Characteristic impedance: 100 Ω ± 5 Ω (100 MHz)
■ Conductor resistance: Max. 93.8 Ω/km at 20°C
■ Resistance imbalance: Max. 5%
■ Unbalance capacity: Max. 45 nF/km at 1 kHz
■ Nominal propagation velocity: 68%
