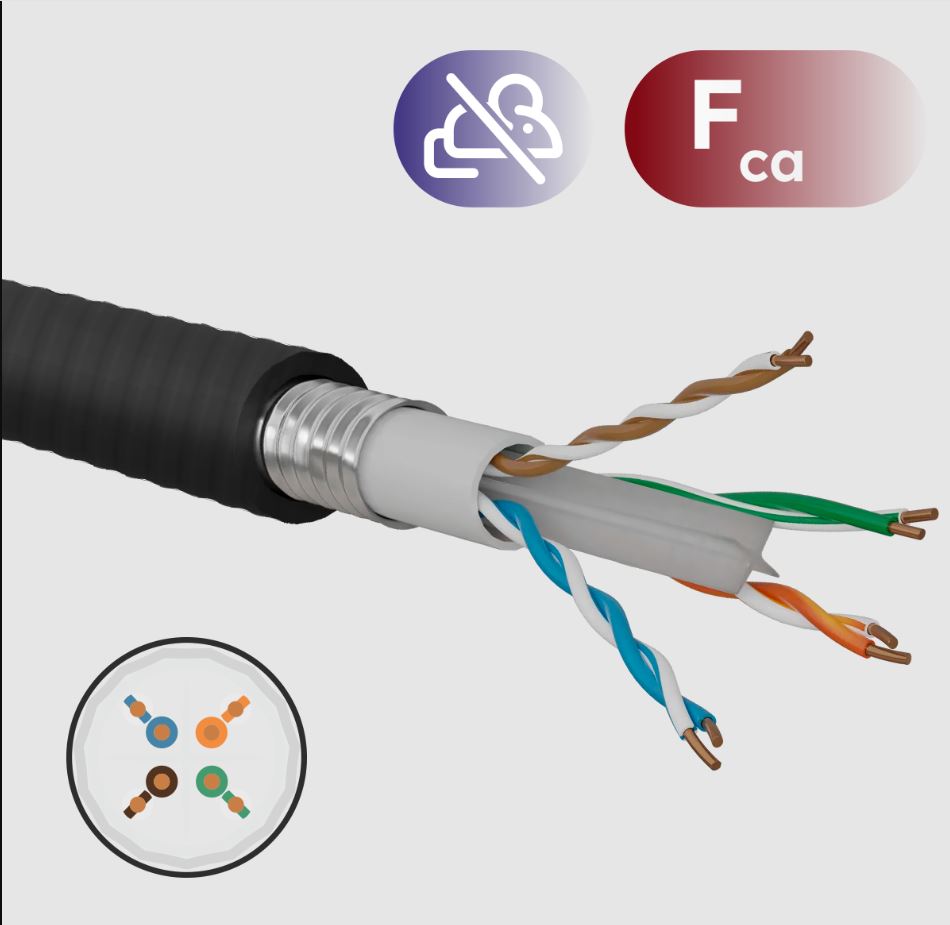

Cat. 6 U/UTP outdoor Fca rodent-resistant cable in 1000 m reel, AWG 23, black color 0755

Applications
Supports all current LAN applications, among others:
■ 10 Base-T (IEEE 802.3)
■ 4/16 Mbps TOKEN RING (IEEE 802.5)
■ 100 Base-VG-AnyLAN
■ 100 Mbps TP-PMD (ANSI X3T9.5)
■ 100 Base-T (IEEE 802.3)
■ 55/155 Mbps ATM
■ 1000 Base-T (Gigabit Ethernet)
Regulations
■ ISO/IEC 11801 2nd Edition
■ TIA - 568 C2
■ IEC 61156-5, IEC 60332-1-2, IEC 60754-2
■ EN 50288-6-1, EN 50173, EN 60332-1-2
Features and Benefits
■ Water and rodent resistant.

■ Ideal for outdoor PoE video cameras.

■ Low propagation delay.

■ High ACR values ​​and minimal speed error.

■ Quick identification and easy installation.

■ High-quality cable design.

■ Available in 1000 m reels. Physical and Mechanical Specifications
■ Composed of: 4 wired pairs
■ Conductor: Solid annealed copper
■ Class: 23 AWG
■ Jacket: Polyethylene (PE), black
■ Armor: Galvanized steel wire braid
■ Coverage: >80%
■ Operating temperature: -20°C to 60°C
■ Thickness: 1.2 ± 0.05 mm
■ Inner diameter: 6.5 ± 0.05 mm
■ Outer diameter: 11 ± 0.05 mm
Electrical Specifications
■ Characteristic impedance: 100 Ω ± 5 Ω (100 MHz)
■ Conductor resistance: Max 9.32 Ω / 100 m at 20°C
■ Resistance of Insulation: Min 150 MΩ/km
■ Resistance imbalance: Max. 5%
■ Nominal propagation velocity: 65%
■ Dielectric strength: 2.5 kV DC for 3 seconds
■ Nominal mutual capacitance (nF/km) at 1 kHz: 56
