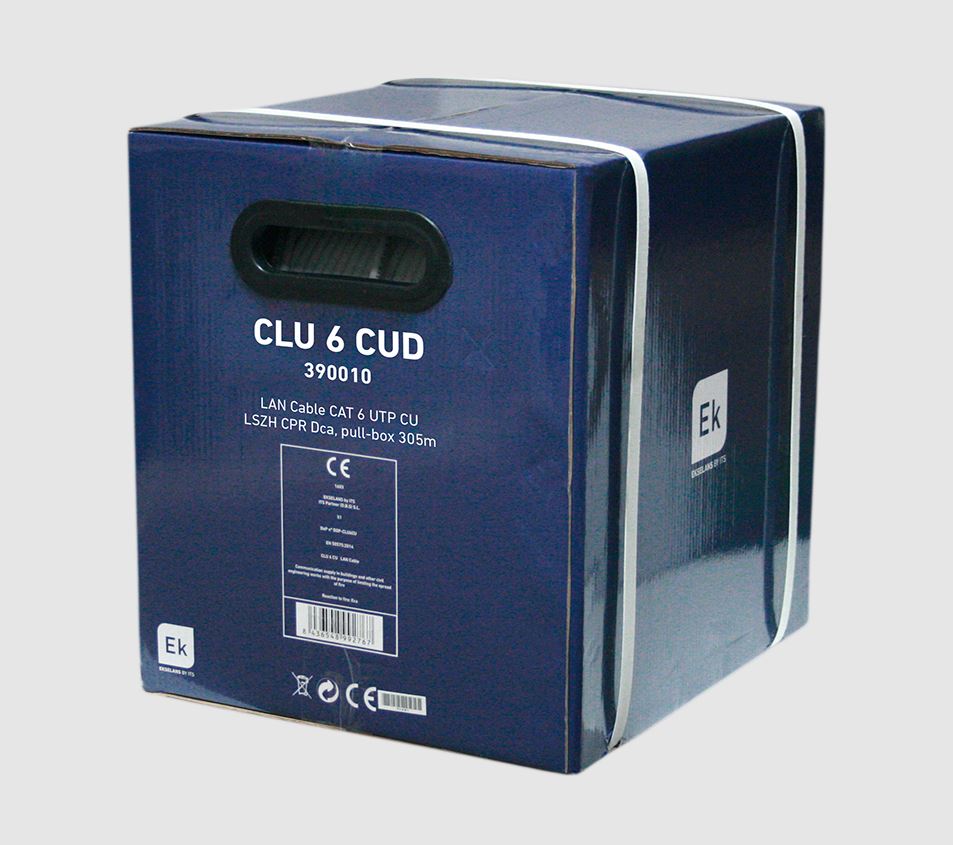

CLU 6 CUD 390010

LAN cable CAT6 U / UTP CU LSZH CPR Dca s2 d2 a2, pull-box 305m 390010

TECHNICAL TABLE

REFERENCE CLU 6 CUD
Construction
Screening U/UTP
Conductor material BC, Copper
Diameter 24 AWG (0.51±0.01mm)
Insulation material HDPE
Nominal thickness 0.21mm
Diameter 0.93±0.05mm
Outside cover material LSZH
Outside diameter 5.8±0.10mm
Color White RAL9010
Cross-pair separator Yes
Rip cord Yes
Electrical
characteristics
Frequency range 1-250MHz
Impedance 93.8Ω/Km
Mutual capacitance ≤56nF/Km
Maximum unbalanced capacity ≤330pF/100m
Maximum unbalanced DC resistance ≤5%
Shealth insulation voltage (DC, 1min.) 1KV
General
Minimum bend radius 65mm
Storage Temp Range -15°C ~ 75°C
Temp range installation -15°C ~ 75°C
Work temperature 0°C ~ 60°C
Maximum pulling force 25lbs
CPR Dca s2 d2 a2
Packaging Reel in box of 305m
Weight Kg 19,5
Color code
Par1 Blue – white/blue
Par2 Orange – white/orange
Par3 Green – White/green
Par4 Brown – white/brown
Frequency
(MHZ)
Att. Max.
(dB/100m) NEXT (dB) RL (dB) PS-NEXT (dB) ELFEXT (dB) PSELFEXT
(dB)
