CFO 24 ARM 360023

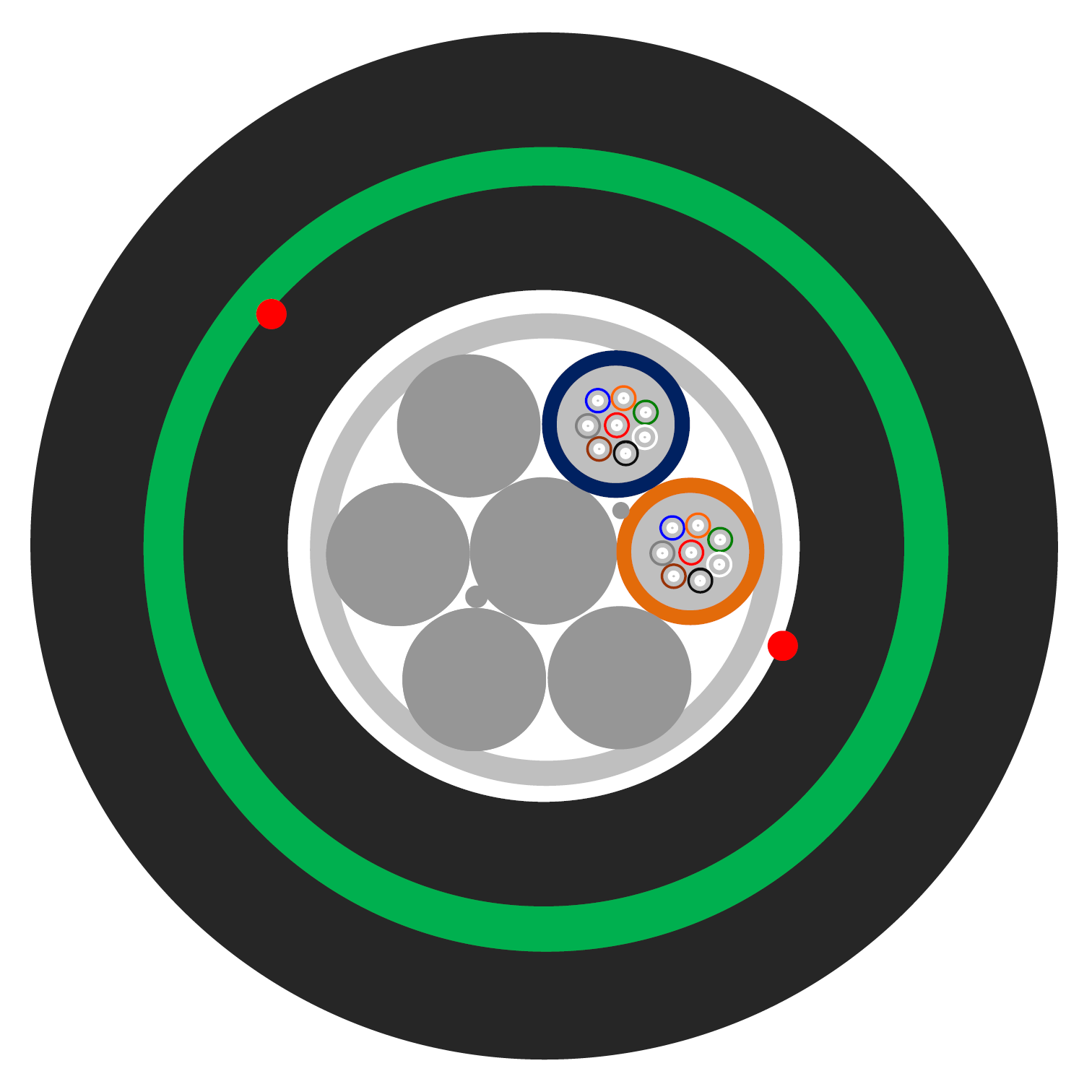

24 fibers PSP armored Cable. 2 loose tubes with 12 fibers. 250D. SM G652D. Black PE outer jacket. 360023

REFERENCE CFO 24 ARM CFO 48 ARM
Code 360023 360024
Fiber
Number of fibers 24
Type of fiber G.652.D
Field mode diameter @ 1310nm µm 9,2±0,4
Field mode diameter @ 1550nm µm 10,4±0,5
Cladding diameter µm 124,8±0,7
Cladding non-circularity % ≤0,7
Core-Cladding concentricity error µm ≤0,5
Cutoff wavelength nm ≤1260
Attenuation @ 1310 nm dB/Km ≤0,4
Attenuation @ 1550 nm dB/Km ≤0,3
Coating
Coating diameter µm 250±15
Coating non-circularity % ≤6
Cladding-coating concentricity error µm ≤12
Coating color blue/ orange/ green/ brown/ grey/ white/ red/ black
Subelements
Subelements 2 ducts, 12 fibers
Subelements material PBT
Subelement diameter mm 2,2±0,1
Subelement colors blue/ orange blue/ orange/ green/ brown/
Reinforcing yarn Fiber glass
Inner Jacket
Jacket diamenter mm 9.6±0,5
Jacket type PE
Jacket color black
Outer Jacket
Jacket diamenter mm 14.1±0,5
Jacket type Double PE jacket with corrugated steel armouring
CPR Level Fca
Jacket color black black
General
Tension (Long term) N 900
Tension (Short term) N 2700
Crush (Long term) N/10cm 1000
Crush (Short term) N/10cm 3000
Min. Bend Radius Dynamic mm 20D
Min. Bend Radius Static mm 15D
Installation temperature ºC -20~+60
Operative temperature ºC -30~+60
Storage temperature ºC -40~+70
