CCR 596-150 151048

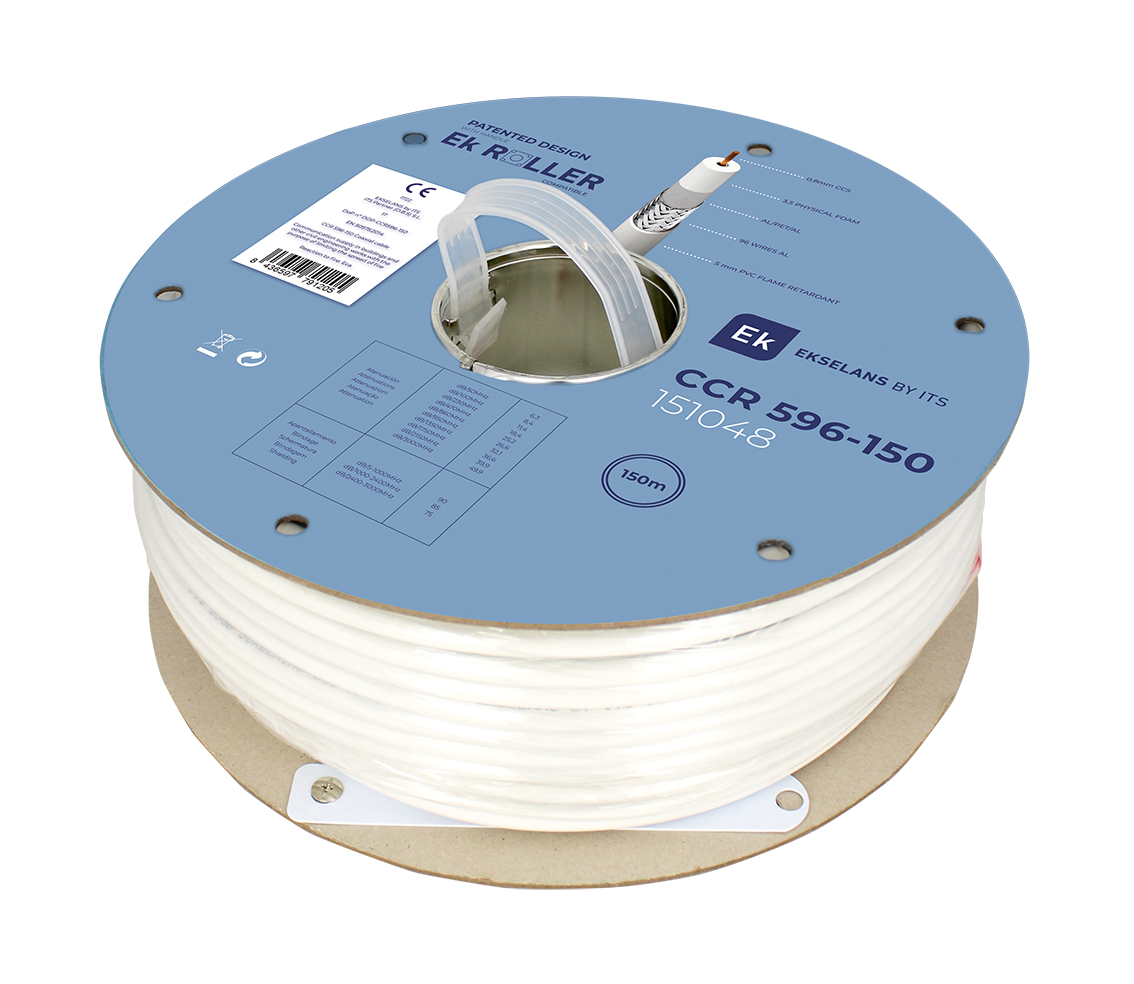

Coaxial cable. 5 mm diameter. Inner conductor CCS. 96 wires. Shielding 90dB/A class. Attenuation: 25,2dB (862 MHz) / 39,9dB (2150 MHz). PVC white jacket. 150 m carton spool to Ek ROLLER 151048

Ek Roller is a new concept of cable dispenser patented by EK that presents unique advantages in the
market. Its low weight and size allows it to be stored in the toolbox and it makes it very easy to use in any
situation and environment. Thanks to its robust steel structure, supports both light reels of less than 1kg
and reels of more than 30kg.
√ The quick fixing system to the reel allows an easy and toolless swap in just two seconds
√ Once fixed, it is automatically integrated into the exclusive EK reel with handle, which makes it
even easier to use and portable
√ EK Roller allows not only the unwinding of cable by simply pulling it, but also makes it easy the
tedious task of winding the excess cable at the end of the installation
√ The EK reels compatible with EK Roller also consist of an innovative system that prevents the
excess cable from becoming entangled and guarantees a fluid unwinding of the same

TECHNICAL INFORMATION

REFERENCE CCR 596-150 CCR 128D CCR 128-250 CCR 128 N
Code 151048 151070 151038 151052
Inner conductor mm / Material 0,8 CCS 1,13 / CCS 1,13 / CCS 1,13 / CCS
Dielectric mm / Material 3,5 PHYSICAL FOAM 4,8 PHYSICAL FOAM 4,8 PHYSICAL FOAM 4,8 PHYSICAL FOAM
Foil – Al/PET/Al Al/PET/Al Al/PET/Al Al/PET/Al
Braid Hilos / Material 96 / Al 128 / Al 128 / Al 128 / Al
Jacket mm / Material 5 PVC FLAME
