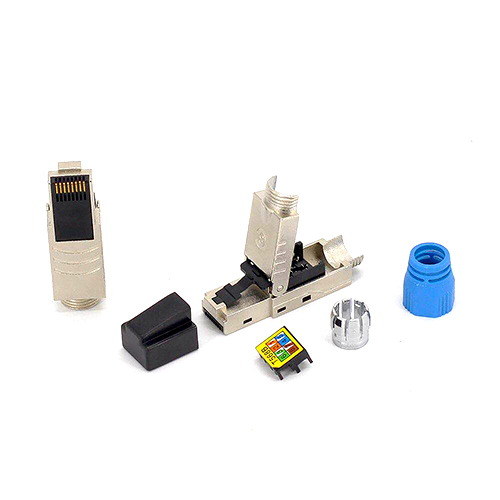

Cat. 7A/7 shielded RJ45 male plug, tool-less

Description
The Cat. 8 male FTP RJ49 industrial connector is used to connect the ends of twisted-pair cables.
Provides a secure mechanical connection. Tool-free installation, ideal for field assembly of both rigid and stranded cables.
AWG 22–27. Suitable for 40G. Ideal for PoE, PoE+, and UPoE.

Applications
Supports all current LAN applications, among others:
■ 10 BaseT
■ 100 BaseTX
■ 1000 BaseT
■ 10G BaseT
■ 40G BaseT
■ Broadband
■ ISDN
■ Token Ring 100 Mbps
■ Token Ring 4 and 16 Mbps
■ PoE+, UPoE
Regulations
■ ISO/IEC 11801
■ ANSI/TIA/EIA 568-B2
■ CENELEC EN50288-3, EN50173:2002, EN50167,
EN50169
■ ISO/IEC 60603-7-51
■ IEEE 802.3at PoE+
■ IEEE 802.3an
■ UL 1863
■ RoH5
Benefits and Features
■ Tool-less assembly.

■ Suitable for FTP cable.

■ Exceeds Cat. 8 standard requirements.

■ High interference protection.

■ Robust design and easy assembly.

■ High quality.

■ 50μ-inch gold-plated contacts.

■ Compatible with both T568-A and T568-B connectors.

■ Secure mechanical cable retention.

■ Protective front cap.

■ Adjustable protection to fit different cable diameters.
