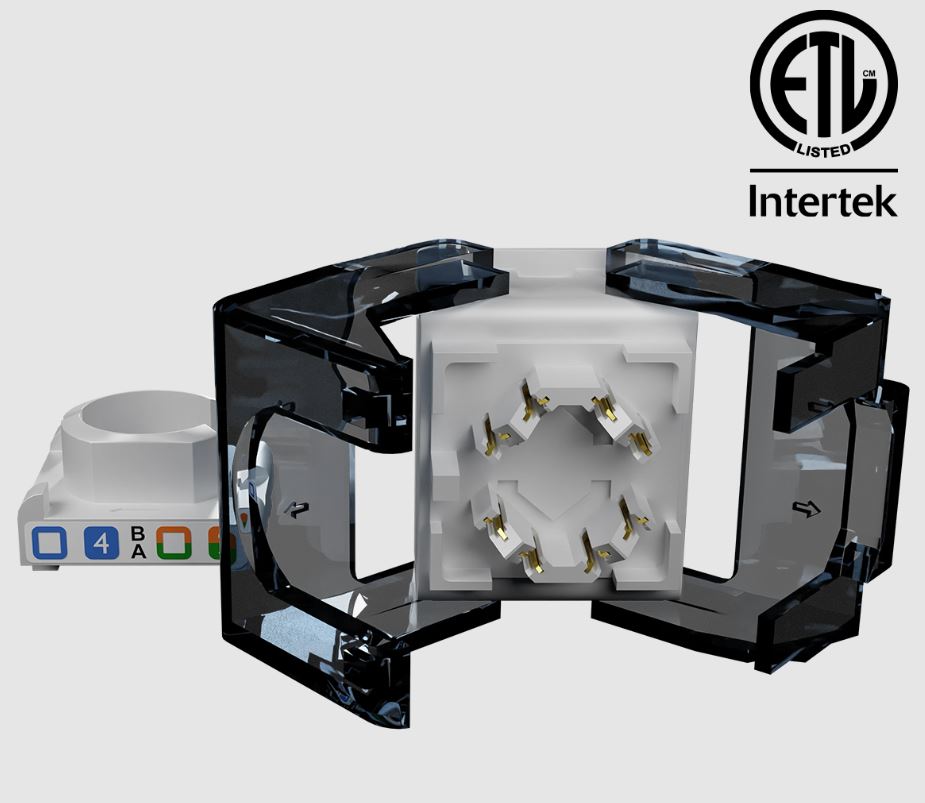

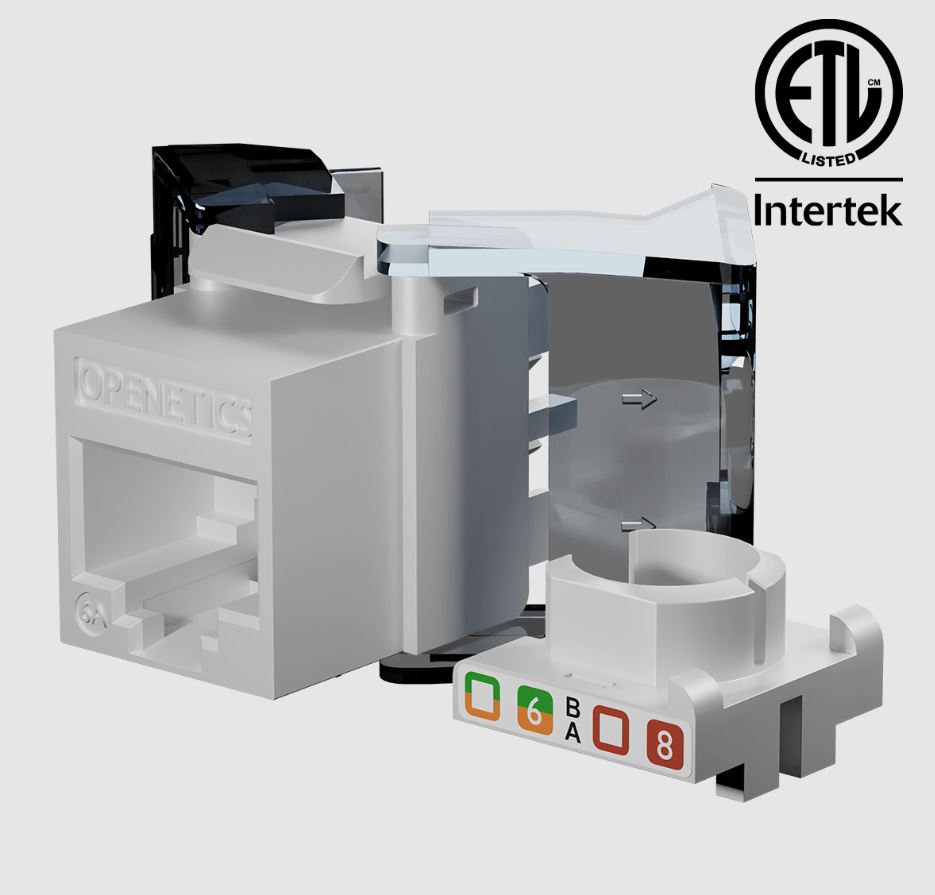

Cat. 6A UTP RJ45 slim keystone jack, tool-less, ETL Certif. [AXT Certifi ed and compatible with Madrid Digital] 5854

Description
Unshielded female RJ45 Cat. 6A modular connector; compliant with Cat. 6A standards for RJ45 connectors with IDC insulation displacement. Designed for surface mounting in patch panels, wall plates, or boxes, and tool-less connectorization. Phosphor bronze contacts with 50 µ” gold.
ETL certified (USA).
Applications
Supports all current LAN applications, among others:
■ 10 BaseT.
■ 10G BaseT.
■ 100 BaseT4.
■ 100 BaseTX.
■ 1000 BaseT.
■ Broadband.
■ ISDN.
■ Token Ring 100 Mbps.
■ Token Ring 4 and 16 Mbps.
Regulations
■ ISO/IEC 11801:2002 (Ed. 2.2).
■ ANSI/TIA/EIA 568-B-2-10.
■ CENELEC EN50288-3, EN50173:2002, EN50167, EN50169, EN50174, EN60352.

■ UNE-EN 60603-7-41.

Benefits and Features
■ Exceeds the Cat. 6A requirements specified by the standard.

■ High protection against electromagnetic interference.

■ Robust design and easy tool-free installation.
■ High quality level.

■ Quick and easy tool-free connection.
■ Allows connection of both T568-A and T568-B.

■ Designed with a 180° rotation for easier maintenance.

■ Narrow construction (16.2 mm) for high density.
