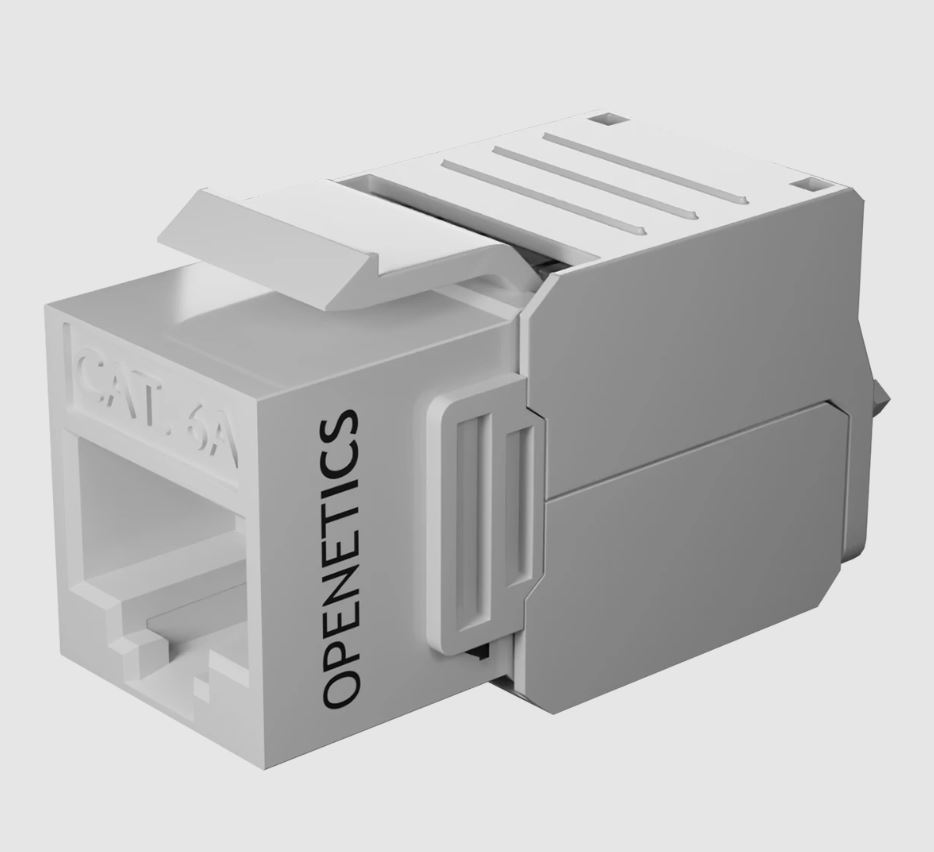

Cat. 6A UTP RJ45 180º slim keystone jack, tool-less white color 5827

DESCRIPTION
Cat. 6A female RJ45 modular connector without shielding. Compliant with Cat. 6A standards for the RJ45 connector with IDC (Insulation Displacement Cable). Designed for installation in patch panels, wall plates, or surface-mount boxes, and for tool-less connection.

APPLICATIONS
• Patch panels
• Surface-mount boxes
• Wall plates
• Tool-less connections
ADVANTAGES
APPLICATIONS
10Base-T Broadband
10GBase-T ISDN
100Base-T4 Token Ring 100 Mbps
100Base-TX Token Ring 4 and 16 Mbps
1000Base-T
STANDARDS
International standard for generic telecommunications cabling in buildings ISO/IEC 11801:2002 (Ed. 2.2).

US standard for high-performance twisted-pair (10G) cabling: ANSI/TIA/EIA 568-B-2-10.
European standards for telecommunications cabling systems and cables: CENELEC EN50288-3, EN50173:2002, EN50167, EN50169.
Standard for modular telecommunications connectors (RJ45): UNE-EN 60603-7-41. PHYSICAL AND MECHANICAL CHARACTERISTICS
Composed of 8 contacts
Sheath Material: Polycarbonate
Contact Material: Gold-plated bronze over 100 μM of nickel
Operating Temperature: -20 ºC to 60 ºC
Conductor Type: Rigid wire, compatible with 22-26 AWG
Color: White (5827) / Black (5828)
Insulation Resistance: 500 MΩ
Contact Resistance: 20 mΩ
Connector Holding Force: 140 N
Duty: 750 cycles
• Exceeds Cat. 6A requirements.

• High protection against electromagnetic interference.

• Robust design and easy tool-free installation.

• High quality. • Easy and quick tool-free connection

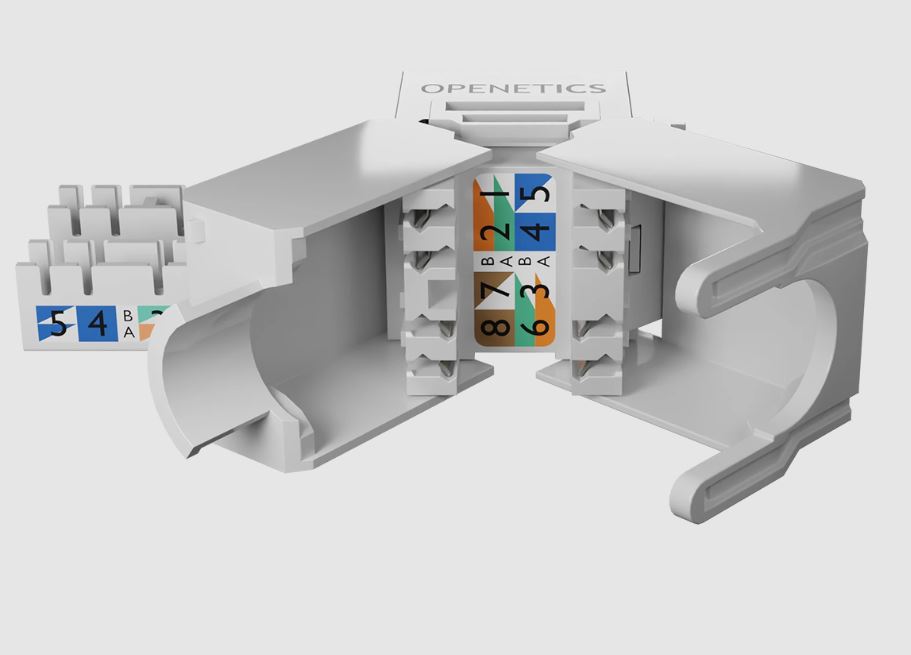

• Allows connection of both T568-A and T568-B.

• Designed with a 180° rotation for easier maintenance.
