51028 OM2 prepolished SC/PC FAST connectors 50/125 μm, 3 mm

OM2 prepolished SC/PC FAST connectors 50/125 μm, 3 mm. 51028

Conector FAST

Description

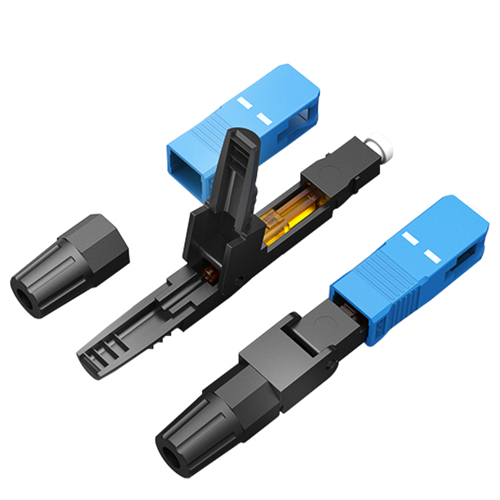

The FAST fiber optic connector is a state-of-the-art, field-installable, quick-assembly connector.
Designed as a factory-pre-polished connector with a focus on rapid and easy assembly,
it is used for fiber optic termination in LAN and FTTH communication installations.
Ease of assembly is enhanced by the fact that installation requires no proprietary tools,
power supply, adhesives, curing ovens, or polishing, while delivering excellent optical performance comparable to
that of epoxy connectors or pigtail fusion splicing.
FAST connectors are available in the following models:
■ Multimode 62.5/125 OM1 (SC/PC)
■ Multimode 50/125 OM2 (SC/PC), OM3 (SC/PC and LC/PC)
■ Singlemode 9/125 OS1 (SC/APC and LC/SPC*)
Applications
Due to its rapid installation and low cost, it is the ideal field-termination solution for LAN, WAN, and FTTx networks.
Standards
Meets and exceeds Telcordia GR-326-CORE requirements.

Benefits and Features
■ Ideal connector for FTTx.
■ Easy field assembly in less than 1 minute.
■ Excellent price-performance ratio.
■ Drastic reduction in installation costs.
■ Unbeatable optical performance.

Technical Specifications
■ Fiber type: Singlemode Multimode
■ Insertion loss: 0.30 dB avg., ≤0.70 dB max. 0.15 dB avg., ≤0.30 dB max.
■ Return loss: ≥ 60 dB ≥ 50 dB
■ Polish type: SPC / APC PC
■ Operating temperature: -20 ºC to 75 ºC
Commercial Information
Ref. Description Fiber Type Class Connector Type Polish Type Fiber Diameter (µm) Cladding Diameter Packaging
51029 FAST Connector Multimode OM1 SC PC 62.5/125 0.9 mm 1
51028 FAST Connector Multimode OM2 SC PC 50/125 3 mm 1
51034 FAST Connector Multimode OM3 SC PC 50/125 0.9 mm 1
51033 FAST Connector Multimode OM3 LC PC 50/125 0.9 mm 1
51031 FAST Connector Singlemode OS2 SC PC 9/125 3 mm 1
51030 FAST Connector Singlemode OS2 SC PC 9/125 0.9 mm 1
51032 FAST Connector Singlemode OS2 LC PC 9/125 0.9 mm 1
