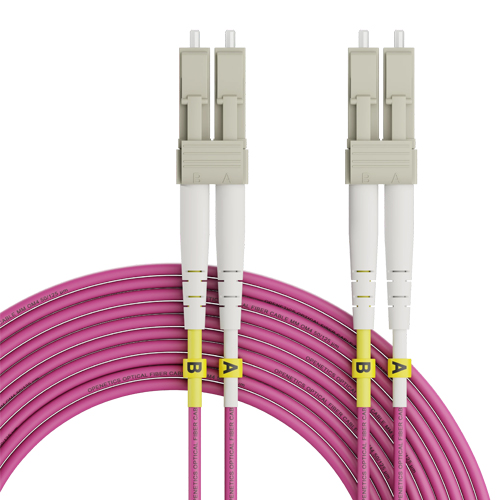

50690/3 OM4 LC-LC Duplex Patch Cord – 50/125 μm, 3 m

OM4 LC-LC Duplex Patch Cord – 50/125 μm, 3 m. 50690/3

OM4 50/125 µm multimode dual-fiber patch cords

Description
High-performance fiber optic patch cords for video, voice, and data transmission. The manufacture of these
patch cords is subject to strict quality control and complies with the most demanding international certification standards.
Applications
■ Interconnection between racks.
■ Direct interconnection between panels and fiber-optic modules.
■ Short-distance distribution to terminals.
■ Patching between panels and optical equipment.
Regulations
Mechanical and thermal testing in accordance with: Fire test in accordance with:
■ EN 187000
■ IEC 60794
■ UNE-EN 50265 (IEC 60332-1)
■ UNE-EN 50268 (IEC 61034-1/2)
Benefits and Features
■ High flexibility.
■ Water-resistant, moisture-resistant.
■ Completely dielectric.
■ I save on installation costs.
■ Low emissions of halogens and fumes.
■ Does not spread flames.
Environmental and Mechanical Specifications
■ Fibers: 2
■ Identification: Colors
■ Traction components: Aramid Yarn
■ Outer cover:
Thermoplastic FRLS
(FRLS-PVC: a special type of PVC that is free of heavy metals, low in halogen and smoke emissions, and non-flame-propagating)
■ Identification: Marked on the cable
■ Outer diameter: 2.9 x 3.3 ±0.1
■ Traction (N): 400
Physical Specifications
■ Core size: 50 microns
■ Cladding: 125 microns
General Specifications
■ Parameter OM4 Multimode
■ Insertion Losses λ = 1300 nm < 0.3 dB
■ Return Losses -PC Polishing
■ Operating Temperature -20°C to 70°C
■ Durability 500 cycles
■ Vibration 10 to 55 Hz, 1.5 mm
■ Tensile Strength 10 kgf
■ Radius of curvature 10 mm – 25 mm
Business Information
Ref. Description Fiber type Connector type Fiber diameter Length (m) Packaging 1º 2º
50690 Two-fiber FO patch cord OM4 multimode LC LC 50/125 µm 2 m. 1
50690/1 Two-fiber FO patch cord OM4 multimode LC LC 50/125 µm 2 m. 1
50690/3 Two-fiber FO patch cord OM4 multimode LC LC 50/125 µm 2 m. 1
50690/5 Two-fiber FO patch cord OM4 multimode LC LC 50/125 µm 2 m. 1
50690/7,5 Two-fiber FO patch cord OM4 multimode LC LC 50/125 µm 2 m. 1
50695 Two-fiber FO patch cord OM4 multimode LC SC 50/125 µm 2 m. 1
50697 Two-fiber FO patch cord OM4 multimode ST LC 50/125 µm 2 m. 1
50698 Two-fiber FO patch cord OM4 multimode ST SC 50/125 µm 2 m. 1
50696 Two-fiber FO patch cord OM4 multimode SC SC 50/125 µm 2 m. 1
