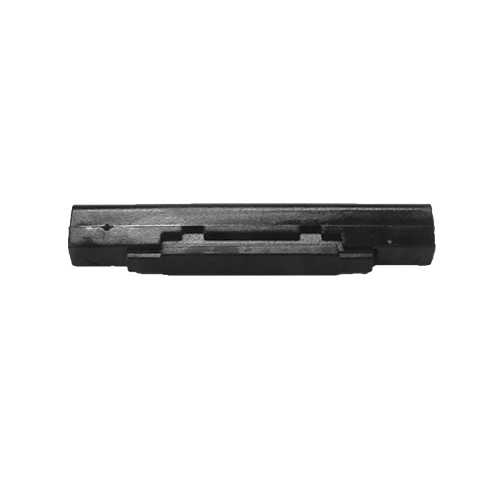

50481 Mechanical splice for fiber optic cassette (250 μm y 900 μm)

Mechanical splice for fiber optic cassette (250 μm y 900 μm). 50481

Mechanical splice for fiber optic cassette (250 µm and 900 µm)

Description
Universal mechanical fiber optic splicer for 125-micron fiber, compatible with both 250-micron and 900-micron coatings.
Applications
Mechanical splicing of optical fibers using index-matching gel; suitable for both multimode and single-mode fibers.
Accommodates 250-micron and 900-micron coatings interchangeably at each end. Very low loss.
Standards
■ ICT2
■ CE Compliance
■ RoHS
OPENETICS
Advantages and Features
■ Quick and easy assembly; no power supply required.
■ Excellent attenuation and return loss characteristics.
■ Easily stored in splice trays.
■ Low cost. Installs in less than 30 seconds.
Technical Specifications
■ Material: Black engineering plastic
■ Cable entry: Compatible with 250 and 900 microns
■ Insertion loss: 0.1 – 0.2 dB
■ Return loss: 50 – 60 dB
■ Height: 38 mm
■ Width: 3.8 mm
■ Depth: 6.4 mm
■ Packaging unit: 20
■ Operating temperature: -40 to +75ºC

REF. Description Dimensions (mm)
Height Width Depth
50481 Mechanical splice for fiber optic cassette (250 µm and 900 µm)
(Pack of 20 units) 38 3.8 6.8
