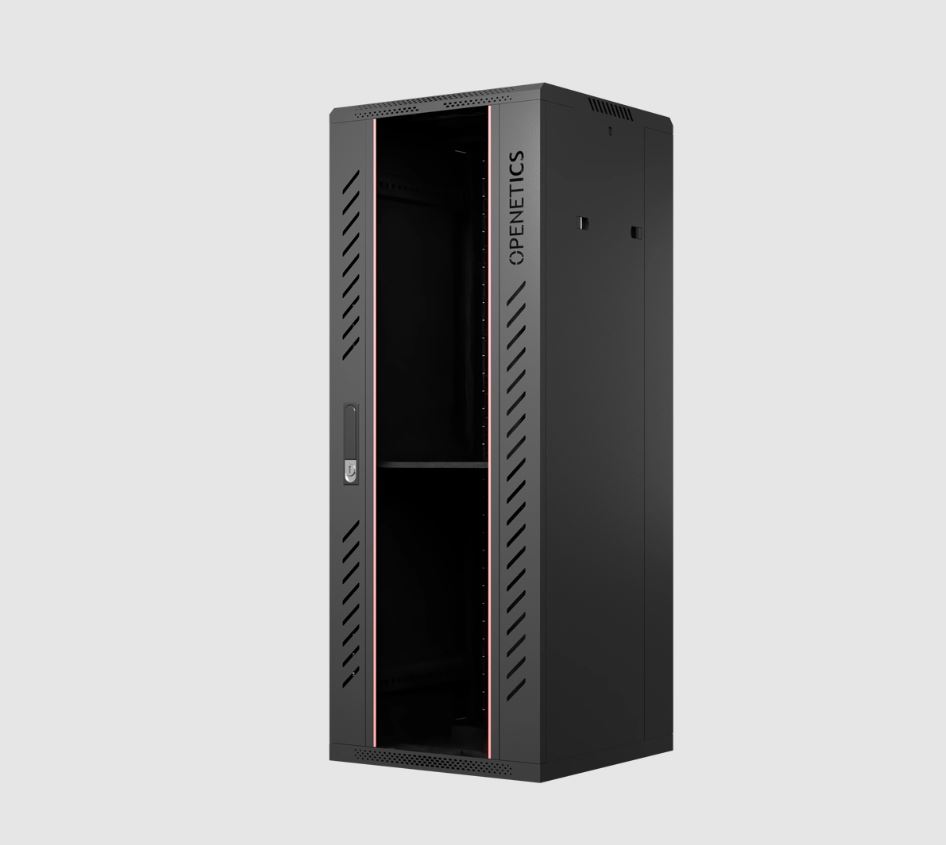

3266VC 19″ rack cabinet 32 U 1525x600x600 – Glass/ Solid steel, model Smart Rack Plus

19″ rack cabinet 32 U 1525x600x600 – Glass/ Solid steel, model Smart Rack Plus.3266VC

19″ Smart Rack Plus Standing Rack
Cabinet
RACK CABINETS
APPLICATIONS
• Electronics
• Networks
• Communications
• Fiber distribution
• Servers up to 800 kg
DESCRIPTION
High-performance rack with a load capacity of up to 800 kg for network and communications
electronics. Elegant design and easy to assemble in a battery configuration. Includes 4 heightadjustable feet, 4 wheels, 1 ventilation panel (4 fans) with digital thermostat, and 1 fixed 1U
tray. Tempered glass or perforated metal door for better ventilation and removable sides with
lock. Standard color: Black RAL 9005. Other RAL colors available on request.

ADVANTAGES
REGULATIONS
Dimensions and format of 19″ racks DIN 41.488 Part 1
Mechanical components and rack accessories DIN 41.494 Parts 7 and 8
Dimensions and design of subracks and
chassis IEC 60297-2 and 3
Racks and frames for electronic equipment UNE 20539-1 and UNE 20539-2
American standard for 19″ racks ANSI/EIA-310-D
Restriction of hazardous substances RoHS
Compliance with European safety and quality directives EC
TECHNICAL SPECIFICATIONS
Material Cold-rolled steel UNE 36086-91
Color Black RAL 9005 (check other available colors)
Maximum load 800 kg (600 kg for 22U, 27U, and 32U racks
with a width of 600 mm)
Height 1081 mm / 1303 mm / 1525 mm / 1970 mm /
2192 mm
Width 600 mm / 800 mm
Depth 600 mm / 800 mm / 1000 / 1200 mm
Frame height 22 U, 27 U, 32 U, 42 U, and 47 U
Packaging unit 1
• Robust and elegant design.
• Easy to assemble in battery configuration.
• Front door made of tempered glass or perforated metal, with lock and key.
• Reversible rear door made of sheet metal with lock and key.
• Easily removable side panels with lock and key.
• Large cable entry capacity in floor and ceiling.
• Front vertical cable guides with hinged covers in 800 mm wide cabinets.
• Ready for installation of vertical PDUs without taking up U space.
• Numbered sliding front and rear guides with “U” shape.
• Adjustable feet (x4).
• Wheels (x4).
• Ventilation panel (4 fans) with digital thermostat.
• Fixed tray 1 U.
• Grounding included.
• Full range of accessories available.
• IP20 protection rating.
• Warranty: 5 years.
