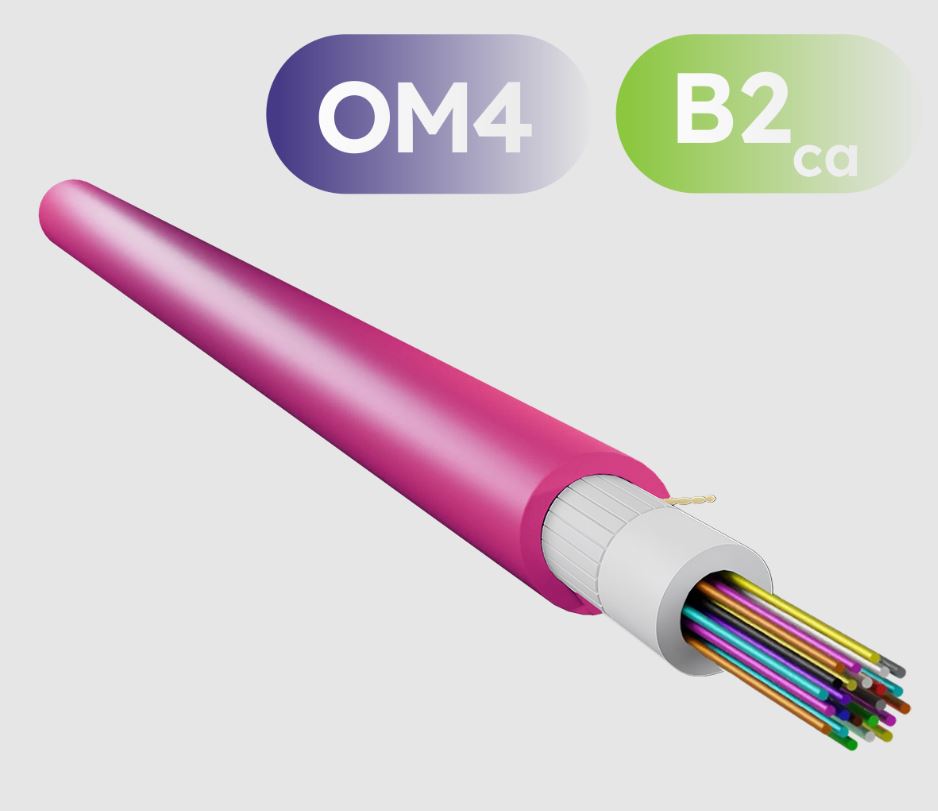

05225 24 fiber OM4 dielectric fiber optic cable [50/125 µm], 7.5 mm outer diameter, LSZH jacket, B2ca.

24 fiber OM4 dielectric fiber optic cable [50/125 µm], 7.5 mm outer diameter, LSZH jacket, B2ca. 05225

DESCRIPTION
High-performance fiber optic cable for video, voice, and data transmission. The manufacture
of these cables is subject to strict safety regulations, complying with the most demanding
international certification standards with a new Slim structure.

APPLICATIONS
• Intercommunication between racks, thanks to the new Slim
format
• Connection between panels and voice and data points
• Short-distance distribution to terminals
• Indoor/outdoor use in local area networks (LAN) and video.

ADVANTAGES
REGULATIONS
Design and construction of fiber optic
cables IN 187,000
Mechanical and environmental test methods
for optical cables IEC 60794-1-2 / F1
Fire propagation test on bundled cables EN 50399
Specifications for multimode and singlemode optical fibers JAN-JUN 60793-2-10 / -50
Flame propagation test on electrical cables UNE-EN 50266 (IEC 60332-1-2-3-24)
Corrosive gas emission test during combustion UNE-EN 50267 (IEC 60754-2)
Combustion smoke density test UNE-EN 50268 (IEC 61034)
European classification of fire performance Euroclass CPR
Fire reaction classification of the cable B2ca, s1a, d0, a1
Product performance statement DOP01005
TECHNICAL SPECIFICATIONS
Fibers 4 6 8 12 16 24
Center tube diameter 3 mm 3.5 mm
Traction elements WB reinforced glass fibers (water blockers)
Armor Fiberglass
Outer cover LSZH / UV thermoplastic
Color Polyolefin – Violet
Weight (kg/km) 52 64
Outer diameter 7 mm 7.5 mm
Maximum load operations / Inst (N) 800 N / 1200 N
Compressive strength (N/10 mm) 1000 (10 min)
Temperature range In service -30°C to +60°C /
Installation: -20°C to 60°C
• Compact, lightweight, highly flexible, robust, and durable.
• Easy to peel (gel-free).
• Fully dielectric.
• Reduced diameter.
• Direct connection.
• Savings on installation costs.
• Halogen-free, low smoke emission, and flame retardant.
• UV resistant.
• Protected from rodents.
• Compatible with the complete range of fiber optic components.

Minimum curvature radius 15 x outer diameter
Maximum coil length (m) 4,000 m. 2,200 m.
Color of the fibers Red, green, yellow, blue, white, violet,
orange, black, gray, brown, pink, turquoise
Color of fibers with 1 ring Red, green, yellow, blue, white, violet,
orange, black, gray, brown, pink, turquoise
PHYSICAL SPECIFICATIONS
Core size 50 microns
MECHANICAL SPECIFICATIONS
Stress test 0.69 GPa
Twisting 5 turns of 180° on a 1 m sample, in both
directions.
Impact resistance 4.4 J; 3 × 2 times ≤ 0.05 dB (1550 and
1625 nm)
Loss of curvature 20 × D ≤ 0.10 dB (1550 and
1625 nm)
Peeling force [F] (maximum value) 1.3 N ≤ F ≤ 8.9 N
Fatigue [ns] ≥ 20
BUSINESS INFORMATION
REFERENCE DESCRIPTION USE COVER FIBER
DIAMETER
NO. OF
FIBERS
LENGTH
(M)
05225
24-fiber OM4 dielectric
fiber optic cable, Ø 7.5 mm.
LSZH, B2ca
indoor /
outdoor LSZH 50/125 μm 24 1
