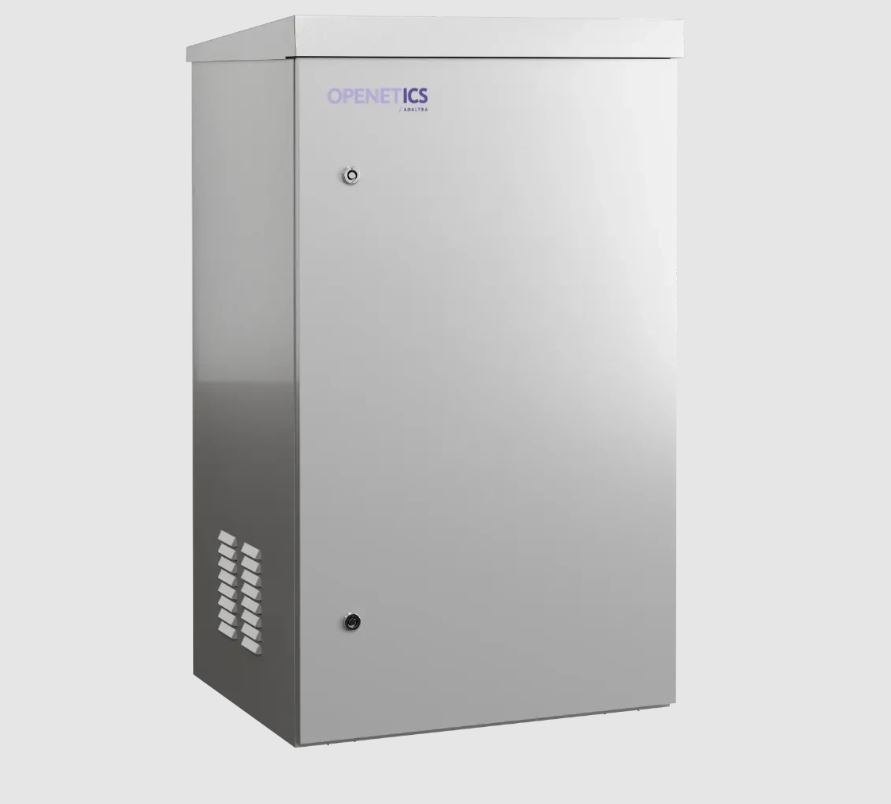

2066IPAG 19″ Galvanized steel weatherproof cabinet, IP66, 20 U 1000x600x500 mm

19″ weatherproof IP66 rack cabinet
RACK CABINETS
APPLICATIONS
• Signage or lighting
• Weather stations
• Telecommunications (data, fiber optics, video surveillance)
• Dirty or polluted environments
• Acidic or saline environments (INOX range)
DESCRIPTION
The IP66 weatherproof cabinets with 19″ rack are characterized by their high resistance to
corrosion, watertightness, and wear. Their spacious interior provides greater usable width and
height. They are equipped with approved water-repellent seals on the exterior doors, ensuring
watertightness and ideal internal temperature stability for installation in areas with extreme
temperatures or polluted industrial environments. They are manufactured from 1.5 and 2 mm
thick steel sheet with a polyester paint finish. The interior design allows for easy installation of
19″ equipment, mounting plates, separators, DIN rails, etc.

PHYSICAL CHARACTERISTICS
• Full IP66-certified protection with sealed holes.
• Includes standard rain gutter canopy.
• Easy installation of forced ventilation (reducing the degree of protection to IP55).
• 19-inch profiles.
• Excellent mechanical properties and high torsional strength.
• Injected water-repellent joint, preventing moisture from accumulating.
• Ample interior space.
• Concealed hinges.
• Double-pallet closures.
• Stainless steel locks with key.
• Maintenance-free throughout its lifetime.
• Cable entry with cable glands to maintain IP66 rating.
OPTIONS NOT INCLUDED
• Special designs and paintings on demand.
• Optional ventilation slots.
• Air intake grille with filters.
• 100 mm high plinth to raise the cabinet and improve cable accessibility.
• Ventilation panel with thermostat (IP 55).
• Metal or insulating mounting plates.
• Wall mounting brackets.
