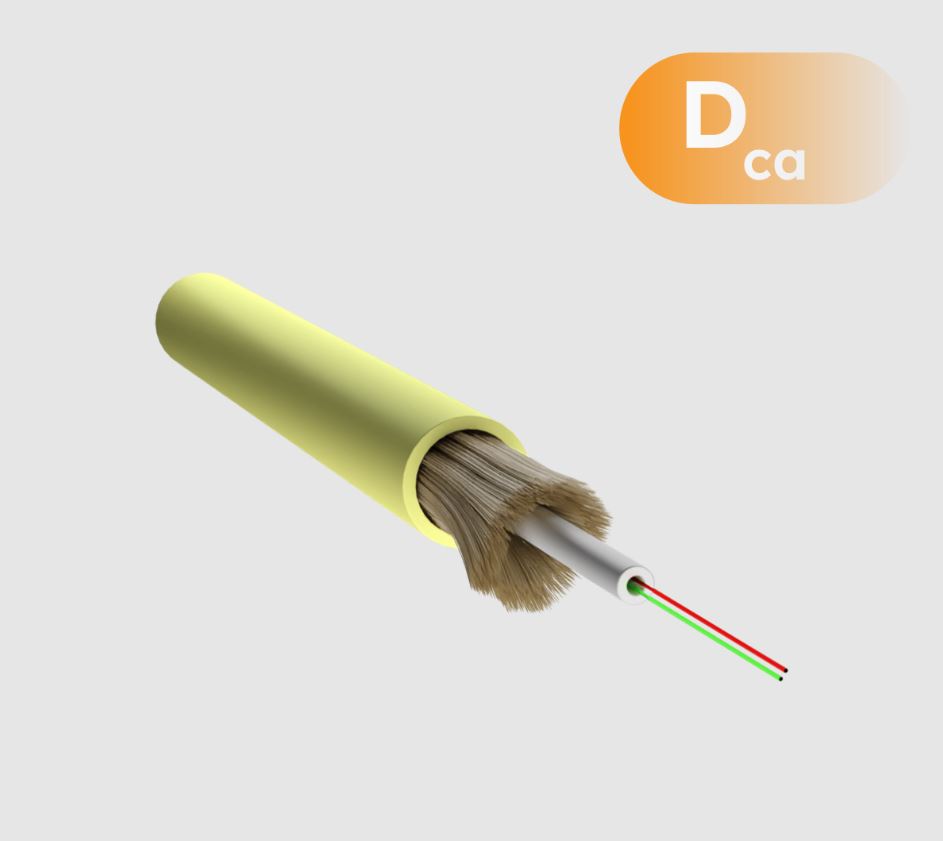

2 fiber dielectric fiber optic cable 49823

2 fiber dielectric fiber optic cable [9/125 µm], tight-buffered, Dca s2, d2, a1, yellow jacket, G-657A2 (505 m box) 49823

2-fiber dielectric optical cable [9/125 μm]
with tight buffer, Dca, s2, d2, a1, G-657A2
for indoor use
49823
APPLICATIONS
• FTTH / FTTx networks.
• Backbone and building distribution.
• Rack installations and technical rooms.
• Indoor or vertical conduits.
• Surveillance and control systems.
• Data center and industrial applications.
DESCRIPTION
The 9/125 µm 2-fiber dielectric optical cable with tight buffer and Dca, s2, d2, a1 classification is
a professional solution designed for telecommunications installations and high-speed networks
that require stable performance, enhanced safety and complete immunity to electromagnetic
interference.
This cable provides excellent long-distance transmission capability while maintaining an improved
bending radius, allowing installation in confined spaces, narrow cable trays, complex conduits
or environments where tight bends are required without compromising attenuation.
ADVANTAGES
STANDARDS
IEC 60793-1 UNE-EN 50266 (IEC 60332/1-2)
IEC 60793-2 UNE-EN 50267 (IEC 60754-1-2)
IEC 60794-2 CPR Euroclass
IEC60332-1-2 Fire reaction Dca, s2, d2, a1
IEC60754-1
IEC60754-2
TECHNICAL SPECIFICATIONS
Number of fibers 2
Fiber type G.657.A2
Mode field diameter @1310 nm 8,8±0,4 µm
Mode field diameter @1550 nm 9,8±0,5 µm
Cladding diameter 124,8±0,7 µm
Cladding non-circularity ≤0,7 %
Core–cladding concentricity error ≤0,5 µm
Cut-off wavelength ≤1260 nm
Attenuation @1310 nm ≤0,4 dB/Km
Attenuation @1550 nm ≤0,3 dB/Km
• Fully dielectric.
• High-quality single-mode performance (9/125 µm).
• Ideal for long distances and high-speed transmission with low attenuation.
• Reduced bending radius.
• Greater installation flexibility.
• Minimizes bending losses even in demanding routes.
• Suitable for point-to-point networks.
• Easy to strip and simple to handle during connectorization.
• Covers long distances without splicing, speeding up deployment and reducing failure points.
• Robust jacket that protects against abrasion, moderate humidity and handling during installation.
• High durability and re
