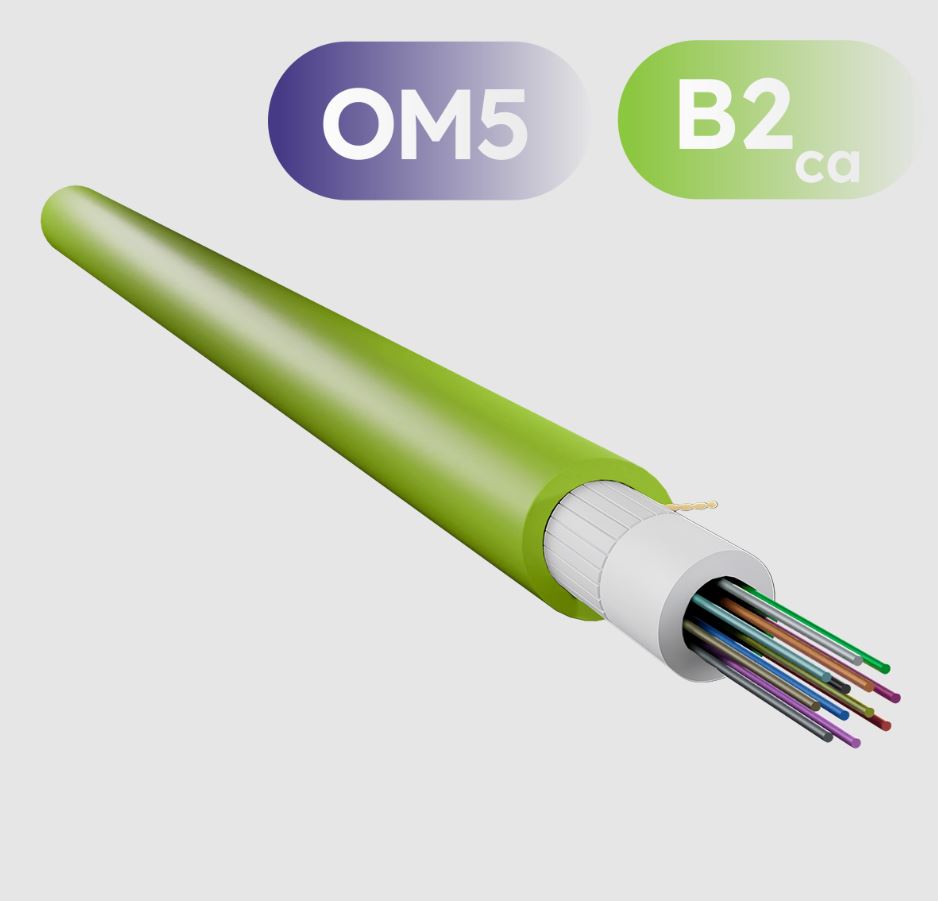

05233 12 fiber OM5 dielectric fiber optic cable, 7 mm outer diameter, LSZH jacket, B2ca s1a, d0, a1

12 fiber OM5 dielectric fiber optic cable, 7 mm outer diameter, LSZH jacket, B2ca s1a, d0, a1. 05233

DESCRIPTION
High-performance fiber optic cable for video, voice, and data transmission. The manufacture
of these cables is subject to strict safety regulations, complying with the most demanding
international certification standards with a new Slim structure.

APPLICATIONS
• Intercommunication between racks, thanks to its new diameter
Slim format.
• Connection between panels and voice and data points.
• Short-distance distribution to terminals.
• General indoor and outdoor use in local area networks (LANs)
and video.

BENEFITS
• Compact, lightweight, highly flexible, robust, and durable.
• Easy to peel (gel-free).
• Fully dielectric.
• Reduced diameter.
• Direct connection.
• Savings on installation costs.
• Halogen-free, low smoke emission, and flame retardant.
• UV resistant.
• Protected from rodents.
• Compatible with the complete range of fiber optic components.

REGULATIONS
Mechanical and thermal tests according to: Fire test according to:
EN 187,000 UNE-EN 50266 (IEC 60332-1-2-3-24)
IEC 60794-1-2 / F1 UNE-EN 50267 (IEC 60754-2)
EN 50399 UNE-EN 50268 (IEC 61034)
ENE-EN 60793-2-10 / -50 Euroclass CPR
Reaction to fire B2ca, s1a, d0, a1
DOP01005

TECHNICAL SPECIFICATIONS
Fibers: 12
Center tube diameter: 3 mm
Traction elements: WB reinforced glass fibers (water blockers)
Armor: Fiberglass
Outer cover: LSZH / UV thermoplastic
Color: Polyolefin – Lima
Weight (kg/km) 64
Outer diameter: 7.5 mm
Maximum load Operation / Installation (N): 800 N / 1200 N
Compressive strength (N/10mm): 1000 (10 min)
Temperature range: In service -30°C to +60°C
Installation: -20 to 60 °C
Minimum curvature radius: 15 x outer diameter
Maximum coil length (m): 2,200 m.
Fiber color: Red, green, yellow, blue, white, violet,
orange, black, gray, brown, pink, turquoise
Color of fibers with 1 ring: Red, green, yellow, blue, white, violet,
orange, black, gray, brown, pink, turquoise
PHYSICAL SPECIFICATIONS
Core size: 50 microns

MECHANICAL SPECIFICATIONS
Stress test: 0.69 GPa
Twisting: 5 turns of 180° on a 1 m sample, in both
directions.
Impact resistance: ≤ 0.05 dB (1550 and 1625 nm)
Losses due to curvature: ≤ 0.10 dB (1550 and 1625 nm)
Peeling force [F] (maximum value): 1.3 N ≤ F ≤ 8.9 N
Fatigue [ns]: ≥ 20
BUSINESS INFORMATION
REF. DESCRIPTION USE COVER Ø
FIBER
NO.
FIBERS
LENGTH
(M)
05233 Dielectric armored multimode
fiber optic cable
interior /
outside LSZH 50/125 µm 12 1
